アルミ連結チャンネル

壁パネルのつなぎに使用するアルミ製の連結チャンネルです。

各種ダウンロード

型別

ＴＣ４２

フランジのついた、42mmパネル用のアルミ連結チャンネルです。

<div style="
font-size: 2.5rem;
font-weight: bold;
color: #000000;
border: 2px solid #000000
padding: 15px 30px;
border-radius: 12px;
box-shadow: 0 6px 12px rgba(0-画像1

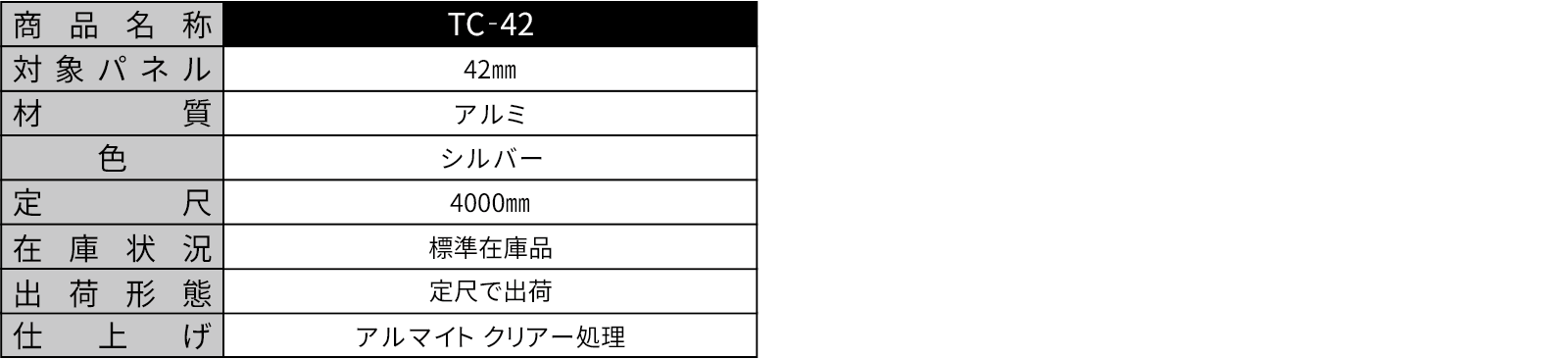

仕様

<div style="
font-size: 2.5rem;
font-weight: bold;
color: #000000;
border: 2px solid #000000
padding: 15px 30px;
border-radius: 12px;
box-shadow: 0 6px 12px rgba(0仕様

４２－ＣＷ９０

42mmパネルを直角に連結させるためのアルミ連結チャンネルです。

仕様

ＣＷ－１８０

42mmパネルを繋ぐアルミ連結チャンネルです。

仕様

よくあるご質問

Q

購入を考えていますが、サンプルはありますか？

A

サンプルをお送りすることができますので、弊社営業までお問い合わせください。

Q

ここに上がっている形材以外の形材はありますか？

A

汎用形材であれば対応できる場合もあります。サイズを営業担当までお知らせください。
