  4. Aluminum flush door

Aluminum flush door

DR40 Utility-type flush door that supports a wide variety of needs

From inspection port to large door for loading and unloading of the machine , also , until air-tight door for super clean room that require stringent airtightness performance from for out of mere people and luggage , is a flush door for a wide range of needs.

  • The air-tight specification of four-side frame cremone handle specification satisfies the A-4 Grade of JIS airtight performance.
  • Interior portion of the door is a combination of aluminum frame and styrene foam (or, phenol foam in case of incombustible specification), resulting in extra lightweight.
  • Can be unified with entirely the same external appearance from inspection opening to large door.
  • A wide variety of options are available, such as window and louver, etc.
  • Wholly custom-fabricated in the unit of one millimeter.
  • Stainless doorsill is optionally available for three-side bottom-tight specification.

DR40 / Single swing / three-side frame

DR40 / Double swing / four-side frame

DR40 / Inspection opening

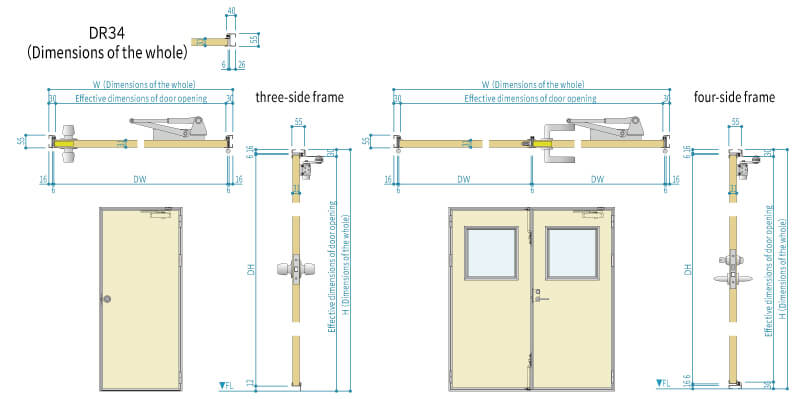

DR30/DR34 Stylish low-profile flush door

Low-profile flush door for inspection opening or exit/entrance door, for the size of so-called "man door". Available models are DR30 that uses latch-type lock and DR34 that allows incorporating electric lock by means of a dedicated outer frame.

  • Streamlined appearance due to small prospective dimension and parting dimension.
  • Interior portion of the door is a combination of aluminum frame and styrene foam (or, phenol foam in case of non-combustible specification), resulting in extra lightweight.
  • A wide variety of options are available, such as window and louver, etc.
  • Wholly custom-fabricated in the unit of one millimeter.

DR30/Single swing/three-side frame

DR30 / Double swing / four-side frame

DR30 / Inspection opening

DR34 / Single swing / three-side frame

Scope of fabrication (unit = mm)

※You can flick left and right to view.
External frame dimension DR30 DR34 DR40
Small door
and
Inspection opening		 Cam latch W310 - 1260
H370 - 1400		 - W400 - 1400
H400 - 1400
When W is greater than H, the largest dimension of W is up to 900mm in usable dimension.
Aspect ratio is up to H:W = 1:1.75
F0 series W310 - 1260
H370 - 1400		 W350 - 1260
H550 - 1400		 W420 - 1400
H400 - 1400
When W is greater than H, the largest dimension of W is up to 900mm in usable dimension
Aspect ratio is up to H:W = 1:1.5
Single swing F0 series W310 - 1260
H370 - 3060 *1		 W350 - 1260
H550 - 3060 *1		 W420 - 2080
H420 - 3080 *1
Dimension DW cannot exceed the dimension DH
Cremone series - - W420 - 2080 *2
H420 - 5080
Dimension DW cannot exceed the dimension DH
Double swing F0 series W600 - 2460
H370 - 3060 *1		 W700 - 2460
H550 - 3060 *1		 W800 - 4080 *2
H430 - 3080 *1
Dimension DW cannot exceed the dimension DH
Cremone series - - W800 - 4080 *2
H430 - 5080
Dimension DW cannot exceed the dimension DH

*1 In the case that there is no pressure difference between inside and outside of the room. If pressure difference exists, up to H2500mm in usable dimension is available.

*2 Limited to the case when the width of face material used is 1000mm or more. For three-foot width, up to 1880mm for single swing and up to 3680mm for double swing are available.

Specification

※You can flick left and right to view.
Model DR30 DR34 DR40
Door thickness
(Overall thickness)		 31mm (36mm) 41mm (47mm)
Opening form Small door, Single swing, Master-slave opening, Double swing
Outer frame Aluminum profile (Alumite, clear finish)
Framing Aluminum framing
Face material Metal sheet 0.4 - 0.6mm
(Steel, aluminum, stainless, or supplied material)
Core material Styrene foam
Phenol foam		 Styrene foam
Paper honeycomb
Phenol foam
Ceramic honeycomb
Packing EPDM rubber
Hinge Stainless flag-type hinge *1
Sliding rubber Polyester base fabric painted with fluorine resin
Lock system *3 Inspection opening *2
One-side handle: Zinc die-cast cam latch handle
Both-side handle: Stainless hermetically-sealed handle
F0 series
Round knob: HMW MAW (MIWA LOCK)/UC-Q,AS-Q(GOAL)
Lever lock: LA52 (MIWA LOCK)/LG-NU(GOAL)
Case lock: MACC HMCC (MIWA LOCK)/UCC,ASC(GOAL)
- Round knob electric lock: AUR(T)W (MIWA LOCK)/EUR(T)-Q(GOAL)
- Lever electric lock: AUR(T)52 (MIWA LOCK)/EUR(T)-NU(GOAL)
- Cremone series
- 53 series, H83V (Shibutani)
- Electric lock EE55, H83V (Shibutani)
Door closer *4 Ryobi,NewStar
Window *4 FX30(Single) ,  FW30(Multiple layer) FX40(Single) , FW40(Multiple layer)
Louver *4 GA30 GA40

*1 Can be optionally changed to automatic hinge or clean hinge.

*2 Inspection opening specification is not available for DR34.

*3 Listed items are standard products. Please feel free to consult us for other types of locks.

*4 Door closer, window, and louver can be added optionally.
