Aluminum framed door

DK40 Rigid aluminum framed door especially for large-sized doors

Aluminum framed door especially for large-sized doors for carrying in/out large equipment. The use of longer vertical frames allows attaching cremone mechanism and electric lock, resulting in achieving large size frame doors. It can also be used when accommodating large windows on large-sized doors.

  • While maintaining smart appearance that is unique to framed doors, a surprisingly large maximum dimension of H5000mm in effective dimension has been achieved
  • Cremone devices can be incorporated
  • Freely selectable combinations: with or without center sash bar, face plates, or louvers
  • Convenient when a large window or louver is desired, such as full-face window or full-face louver
  • Full-fledged electric lock can be supported
  • Wholly custom-fabricated in the unit of one millimeter.

DK40 / Single swing / three-side frame

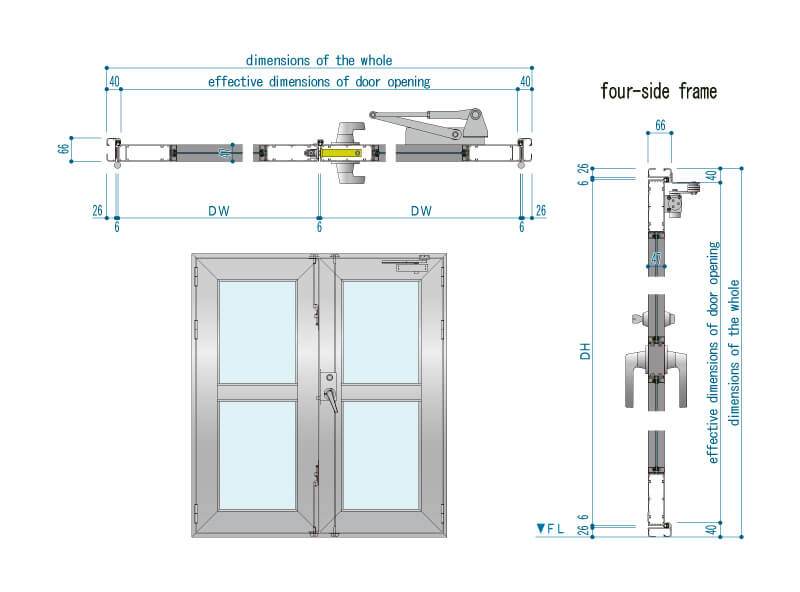

DK40 / Double swing / four-side frame

DK30 / DK34 Light-weight framed door with a smart appearance

Light-weight framed door for inspection opening or exit/entrance door, for the size of so-called �gman door.�h Available models are DK30 that uses latch-type lock and DK34 that allows incorporating electric lock by means of a dedicated outer frame. Can be selected from two types: with center sash bar that separates upper and lower face plates, and without center sash bar for separation.

  • Convenient when a large window or louver is desired, such as full-face window or full-face louver
  • The combination of only aluminum frames and face plates provides very light weight
  • Streamlined appearance due to small prospective dimension and parting dimension
  • Freely selectable combinations: with or without center sash bar, face plates, or louvers
  • Full-fledged electric lock can be supported even though it is a narrow frame door *Only DK34
  • Wholly custom-fabricated in the unit of one millimeter.

DK30 / Single swing / three-side frame

DK30 / Double swing / four-side frame

DK30 / Inspection opening

DK34 / Single swing / three-side frame

Scope of fabrication (unit = mm)

※You can flick left and right to view.
External frame dimension DK30 DK34 DK40
Small door
and
Inspection opening		 Cam latch W300 - 1400
H370 - 1400		 - -
When W is greater than H, the largest dimension of W is up to 900mm in usable dimension.
Aspect ratio is up to H:W = 1:1.75
F0 series W400 - 1400
H370 - 1400		 W400 - 1410
H550 - 1400		 -
When W is greater than H, the largest dimension of W is up to 900mm in usable dimension
Aspect ratio is up to H:W = 1:1.5
Single swing F0 series W400 - 1410
H400 - 3060 *1		 W400 - 1410 *2
H550 - 3060 *1 *3		 W800 - 2080
H800 - 3080 *1
Dimension DW cannot exceed the dimension DH
Cremone series - - W800 - 2080 *2
H800 - 5080
Dimension DW cannot exceed the dimension DH
Double swing F0 series W800 - 2760
H420 - 3060 *1		 W800 - 2760
H550 - 3060 *1		 W1600 - 4080 *2
H800 - 3080 *1
Dimension DW cannot exceed the dimension DH
Cremone series - - W1600 - 4080 *2
H800 - 5080
Dimension DW cannot exceed the dimension DH

*1 In the case that there is no pressure difference between inside and outside of the room. If pressure difference exists, up to H2500mm in usable dimension is available.

*2 Only from W600- (single swing) or W1200- (double swing) is available for glass face plate without center sash.

*3 Only from H1220- is available for glass face plate without center sash.

Specification

※You can flick left and right to view.
Model DK30 DK34 DK40
Door thickness
(Overall thickness)		 36mm 47mm
Opening form Small door (only for DK30), Single swing, Master-slave opening, Double swing
Outer frame Aluminum profile (Alumite, clear finish)
Framing Piece-to-piece assembling with stop cutting *5
Face material Opaque: Aluminum laminated plate
Transparent: Glass (DK30 - reinforced glass only), Polycarbonate, Acrylic, Polyvinyl chloride, PET, etc.
Packing EPDM rubber
Hinge Stainless flag-type hinge *1
Sliding rubber Polyester base fabric painted with fluorine resin
Lock system *3 Inspection opening *2
One-side handle: Zinc die-cast cam latch handle
F0 series
Round knob: HMW MAW *6 (MIWA LOCK)/UC-Q,AS-Q *6 (GOAL)
Lever lock: LA52 (MIWA LOCK)/LG-NU(GOAL)
Case lock: MACC *6 HMCC (MIWA LOCK)/UCC,ASC *6 (GOAL)
- Round knob electric lock: AUR(T)W (MIWA LOCK)/EUR(T)-Q(GOAL) *7
- Lever electric lock: AUR(T)52 (MIWA LOCK)/EUR(T)-NU(GOAL) *7
- Cremone series
- 53 series, H83V (Shibutani)
- Electric lock EE55, H83V (Shibutani)
Door closer *4 Ryobi,NewStar
Louver *4 Wing configuration: Angular/One-side sloping
Aperture ratio: 30%/50%

*1 Can be optionally changed to automatic hinge or clean hinge.

*2 Inspection opening specification is not available for DK34 and DK40.

*3 Listed items are standard products. Please feel free to consult us for other types of locks.

*4 Door closer and louver can be added optionally.

*5 Only the bottom portion is a thrust structure for DK40 bottom tight and BR tight.

*6 Not available for DK34 and DK40.

*7 Not available for DK34.
